Product Description

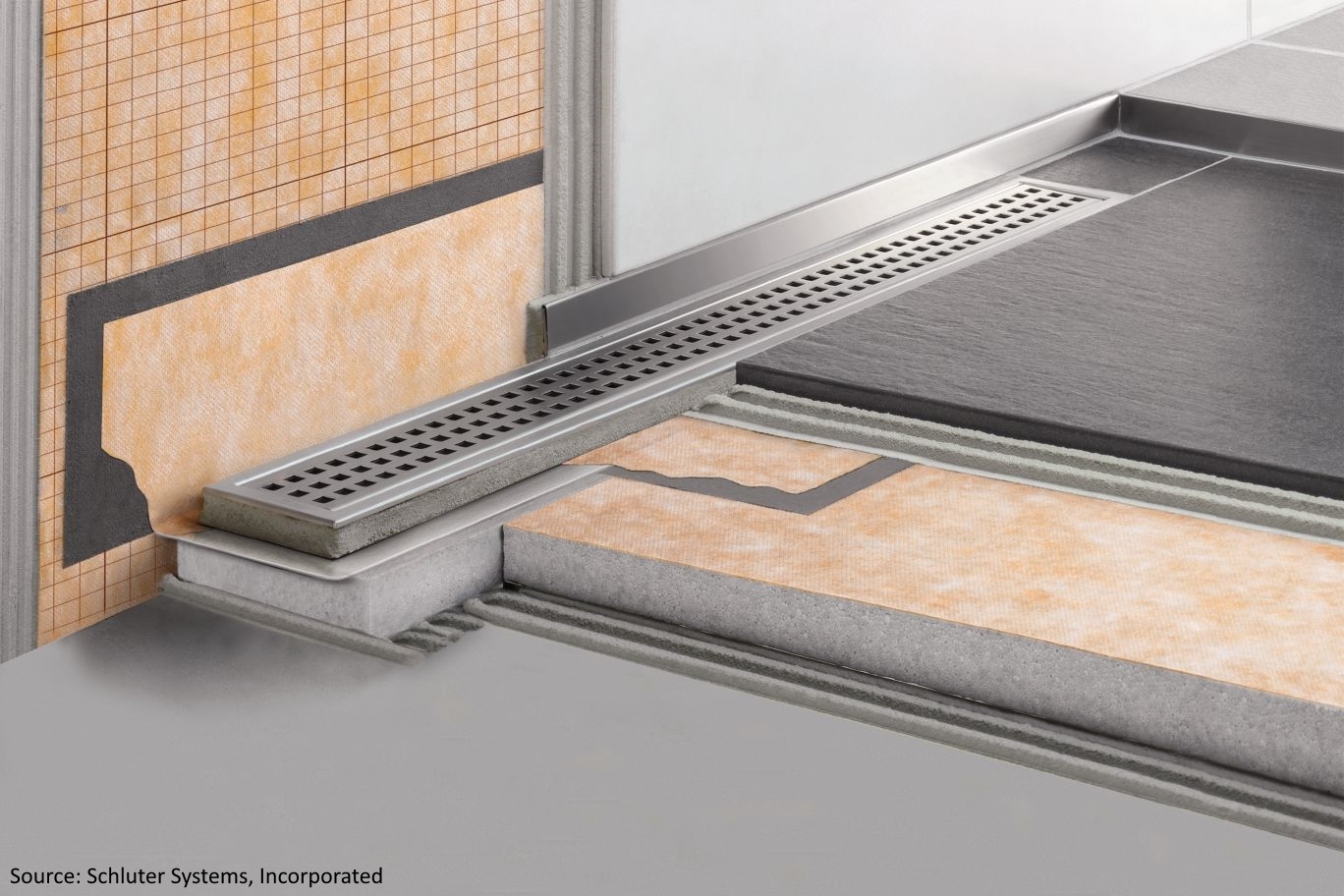

The Schluter¨-KERDI-LINE is a low profile linear floor drain specifically designed for bonded waterproofing assemblies. KERDI-LINE can be installed adjacent to walls or at intermediate locations in showers, wet rooms, and other applications that require waterproofing and drainage.

  • Create barrier-free, open-concept spaces
  • Floors can be sloped on a single plane to KERDI-LINE, enabling the use of large-format tiles
  • Channel body is made of formed stainless steel and features a KERDI collar to create a secure waterproof connection
  • Two frame height options available to accommodate different tile covering thicknesses
  • Off-set and center outlets available
  • Accommodates all thicknesses of ceramic tiles and stone coverings
  • Available in lengths ranging from 20" (50 cm) to 72" (180 cm)
  • Grate assemblies sold separately and available in three designs: closed, perforated, and a frameless tileable grate
  • Can be used with the KERDI-LINE-FC to create a seamless look in applications where multiple drains are installed end-to-end


Click here to see more information regarding Schluter Ditra

*The trademark of Schluter-Systems is the exclusive property right of Schluter Systems L.P. and any commercial use is restricted by law. *

This item weighs: 8 lbs. per unit/each.


FREE SHIPPING
Use Coupon Code SCHLUTER15 to get an additional 15% off.

Schluter Systems Kerdi-Line 28" Closed Grate 30mm Height Stainless Steel



Our Price: $294.93 EA
Compare To: $353.92 EA
